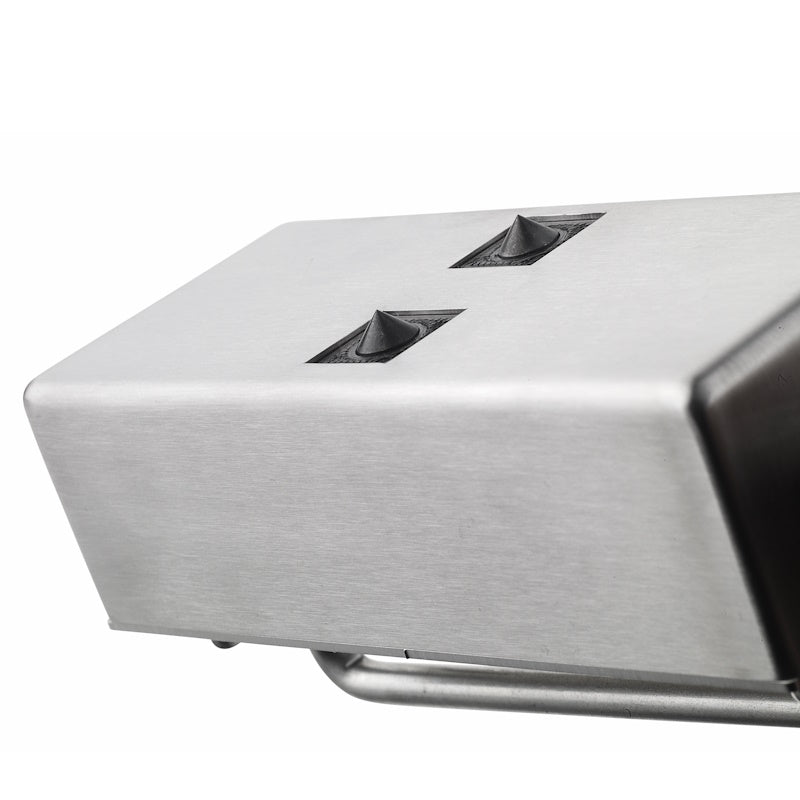

The Q.Crodile Magnet X2 was designed as a flat building block. It can be used anywhere where secure grounding is required but there is not enough space for an grounding clamp. The hand magnet is placed on the lid or on the side of the barrel and is held in place by magnetic force. The two built-in tips connect to the bottom of the barrel with a little manual rubbing, thus creating a secure connection to good earth.
Advantages ✓ metal parts made of stainless steel ✓ conductive plastic ✓ high magnetic force
technical data
area of application
Zones 1, 2 and 21, 22
ex marking
II 2G Ex h IIB T6 Gb II 2D Ex h IIIB T80°C Db
material
Stainless steel 1.4301
dimensions
150 x 75 x 55 mm (W x H x D)
sharpen
2 pieces, made of WKZ steel

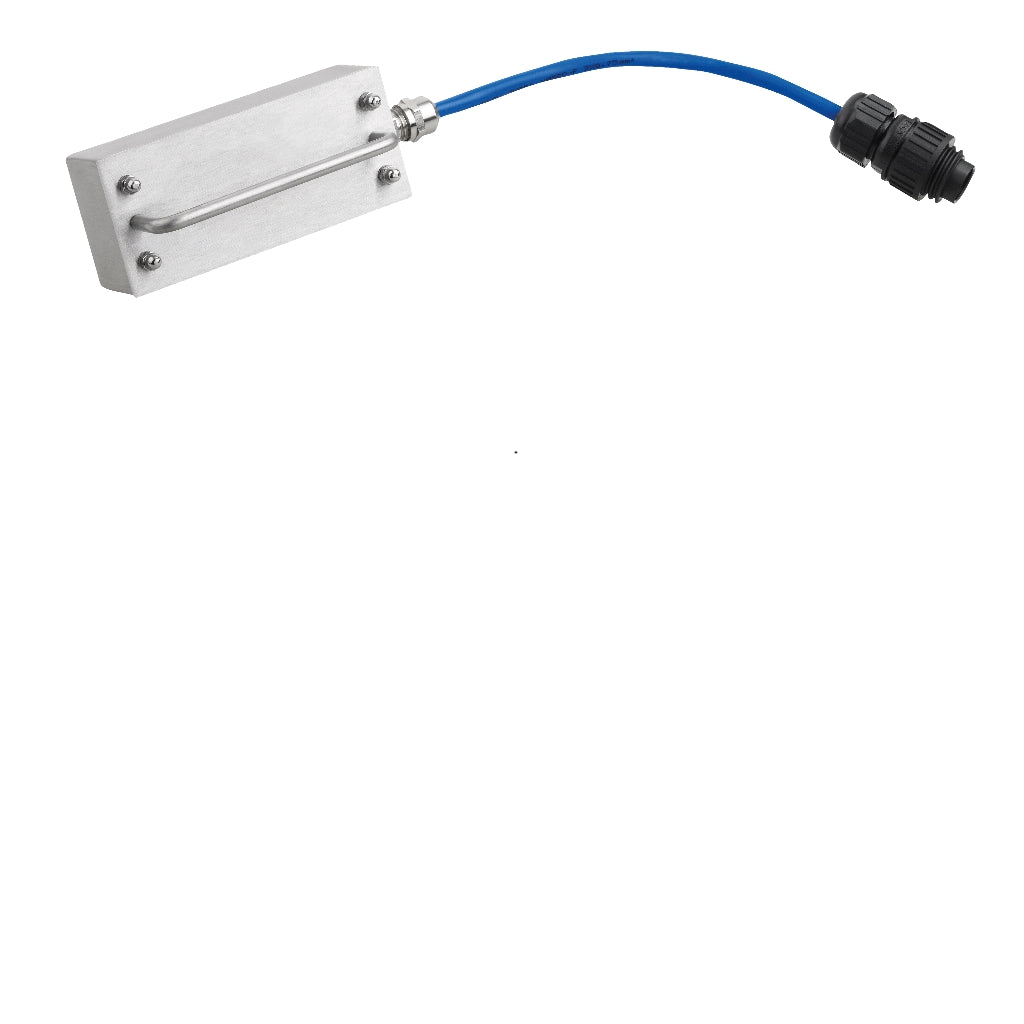

mounted cable
20 cm blue, 2-pin with plug
scope of application
painted and unpainted containers with a volume of more than 50 litres
