REMBE® Grounding
SYMEGA.VO
SYMEGA.VO
Couldn't load pickup availability
The grounding monitoring system SYMEGA.VO may be used in
the potentially explosive areas of Zones 1 and
21. It provides a secure connection
of stationary and mobile, metallic or conductive and
conductive objects and good earth.
The built-in LEDs indicate the current status of the
grounding process.
Thanks to the two built-in potential-free changeover contacts
This condition can be fully integrated into the process control system
and thus provides the greatest possible
The measurement can be carried out in two variants
low-resistance for potential equalization of
0–1 kΩ or 103 Ω for all metallic objects and
high-resistance for potential equalization of 0–3 MΩ or
3 x 106 Ω for big bags type C.
technical data | |
---|---|
area of application | Zones 1, 2 and 21, 22 |
ex marking |
II (1) 2G Ex eb ia mb IIC T4 Gb II (1) 2D Ex ia tb 120° C Db |
check number | TPS 18 ATEX 92819 002 X |

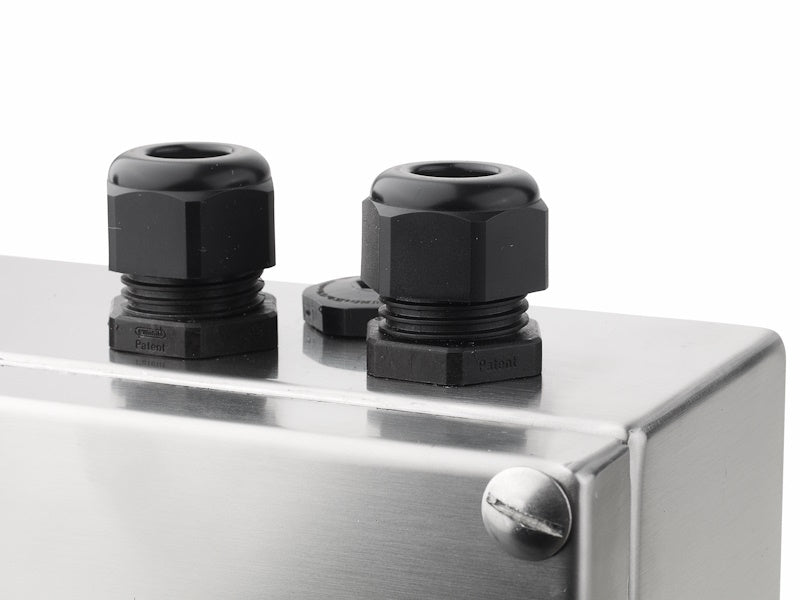

housing material |
Stainless steel V2A |
housing sizes/ number of grounding systems |
200x200x80mm / 1 200x200x120mm / 2 200x300x120mm / 3 300x300x120mm / 4 |
protection class | IP64 |
potential-free changeover contacts | 2 pieces per board |
supply voltage | 8V to 28V DC |
power consumption | < 1W per board |
switching current relay contact |
max. 2A DC max. 6A AC |
ambient temperature | -20°C to +40°C |
scope of application |
Barrels, containers, trucks, tankers, big bags type C, IBC containers |
