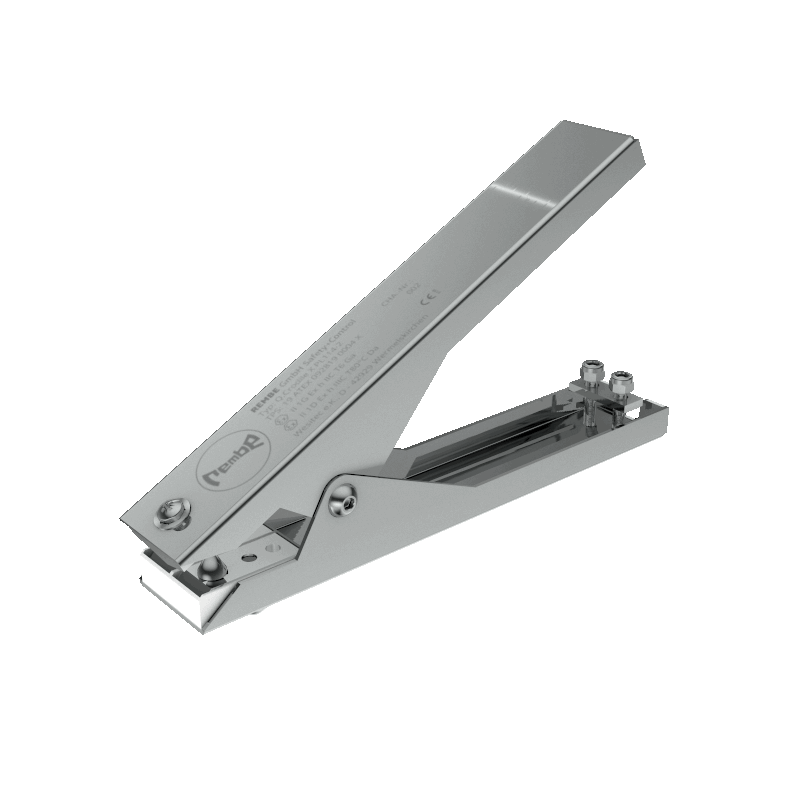

The two-pole grounding clamp Q.Crodile X PL114-2 is suitable for all common applications, such as barrel, container and canister grounding . Its robust design makes it suitable for even the harshest environmental conditions. The stainless steel teeth used are hardened and therefore particularly durable. The earthing clamp is intended exclusively for use with the SYMEGA.VO and SYMEGA.SI grounding systems.

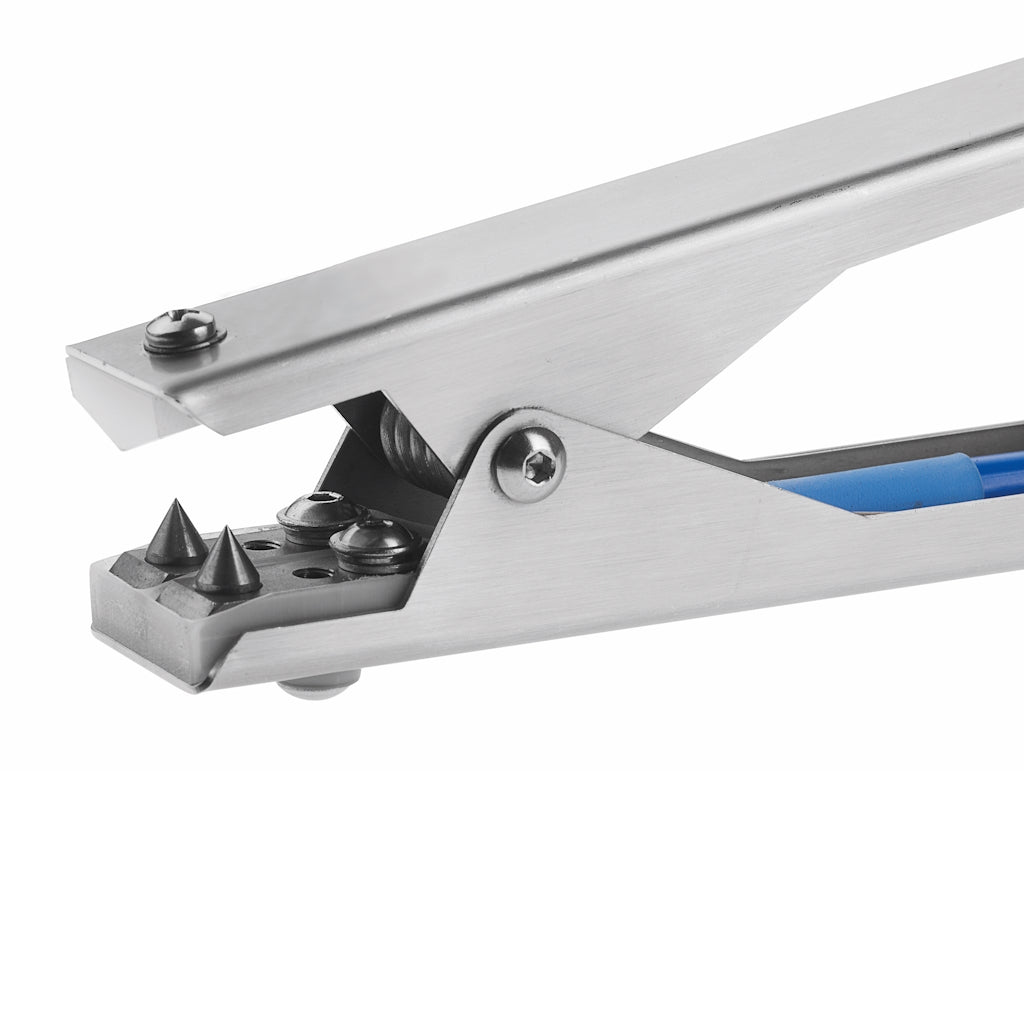

Advantages ✓ metal parts made of stainless steel ✓ hardened stainless steel teeth for a long service life ✓ connection via quick connector for quick change during operation ✓ high clamping force of the pliers due to strong spring ✓ stainless steel teeth particularly sharp due to 60° angle
technical data
area of application
Zones 0, 1, 2 and 20, 21, 22
ex marking
II 1G Ex h IIC T6 Gb II 1D Ex h IIIC T80° C Db
eB marking
simple equipment according to DIN EN 60079-11
material
Stainless steel 1.4301
stainless steel teeth
hardened, 2 pieces (mounted on one side of the leg)
connection type

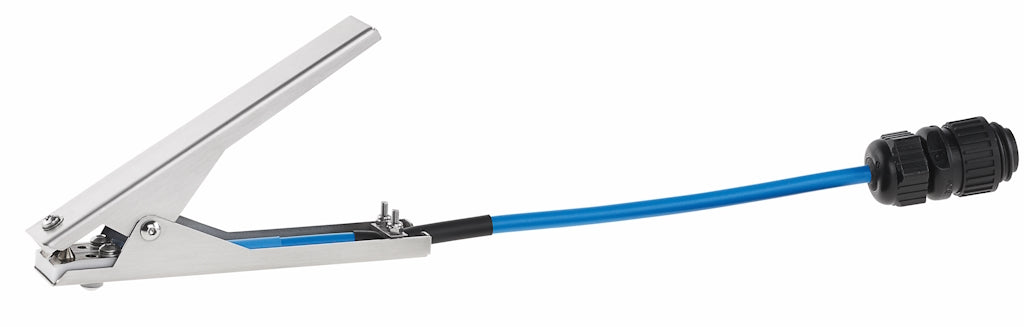

pre-assembled 2-pin cable (20 cm) incl. EVS plug
leg length
140mm
opening width
15mm
scope of application
painted and unpainted containers, metallic and conductive funnels, IBCs, tank trucks
