REMBE® Grounding

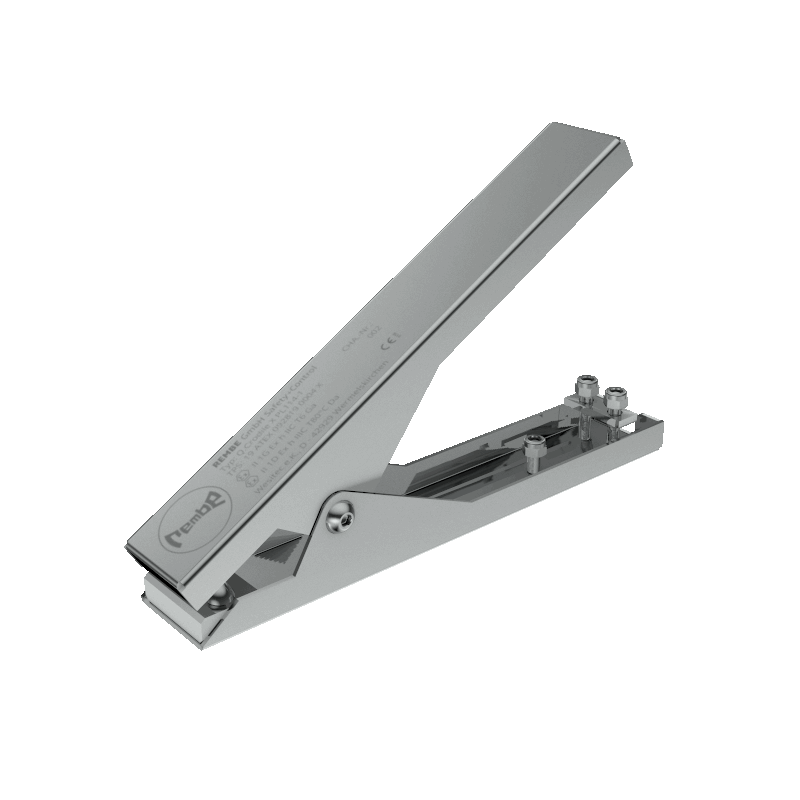

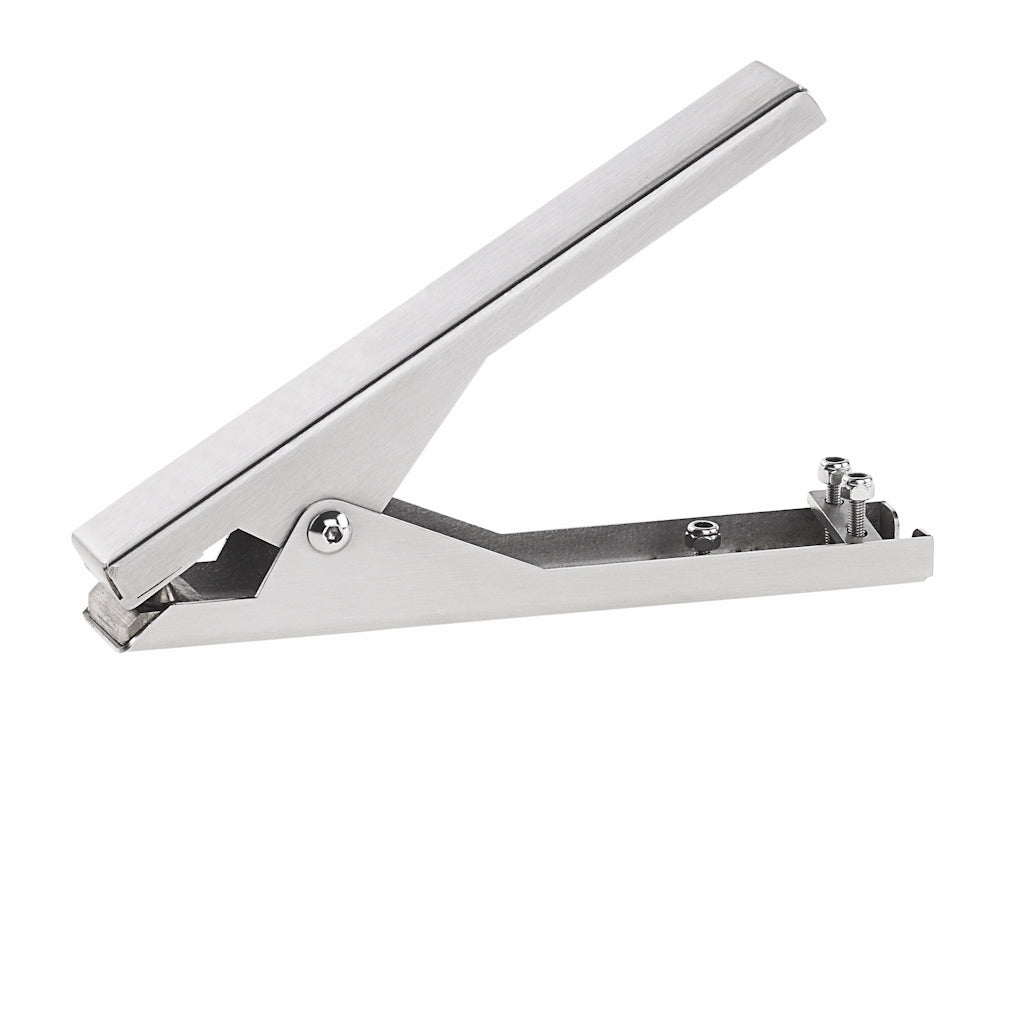

Q.Crodile X PL114-1

Q.Crodile X PL114-1

Regular price
Regular price Sale price
Sale Sold out

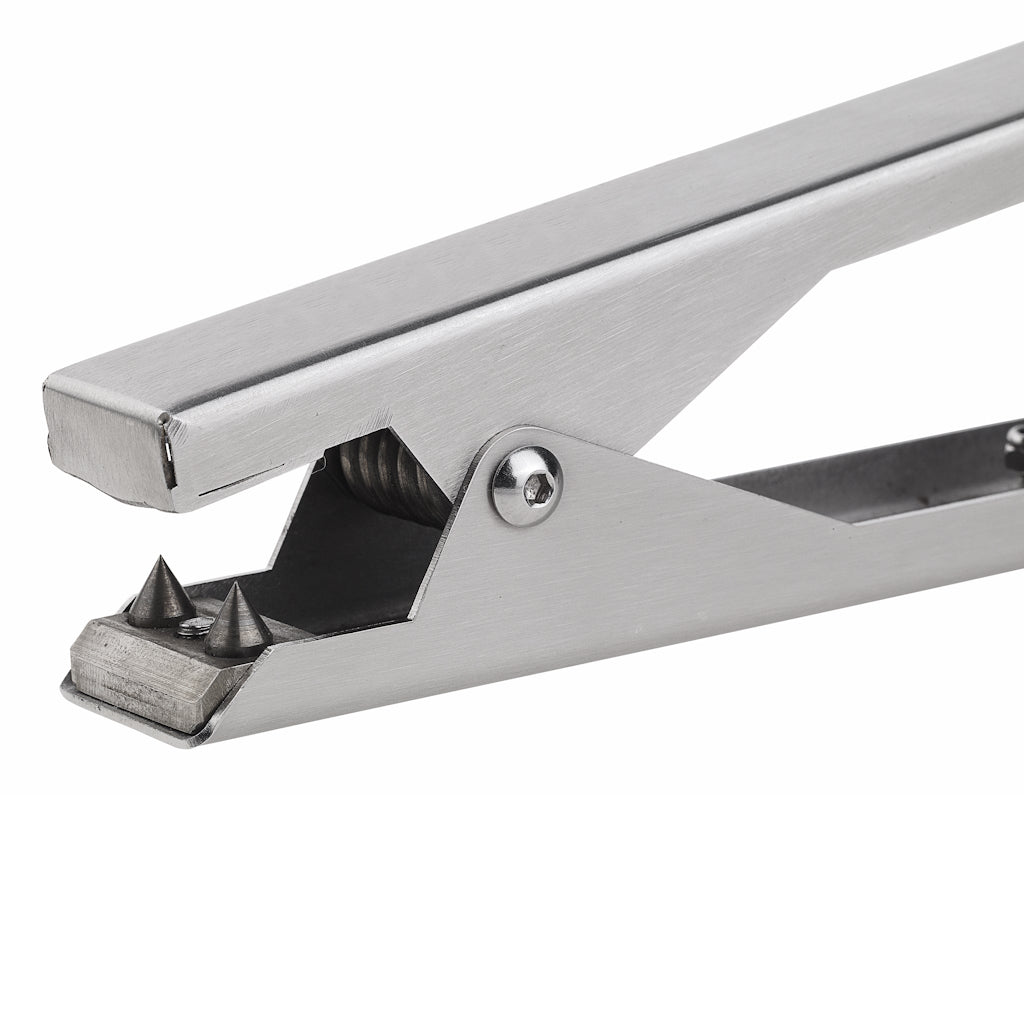

The Q.Crodile X PL114-1 grounding clamp is suitable for all common applications, such as barrel, container and canister grounding . The robust design of the grounding clamp means it can be used in even the harshest environmental conditions. The stainless steel teeth are hardened and therefore particularly durable. When not in use, they are protected by the relief holes in the clamp.

Advantages
✓ robust construction
✓ metallic parts made of stainless steel
✓ hardened stainless steel teeth for a long service life
✓ high clamping force of the pliers due to strong spring


technical data
area of ​​application Zones 0, 1, 2 and 20, 21, 22
ex marking

II 1G Ex h IIC T6 Gb
II 1D Ex h IIIC T80° C Db
material Stainless steel 1.4301
stainless steel teeth

hardened, 2 pieces (mounted on one side of the leg)
connection type

1-pole via M3 eyelet
(max. 10 mm²)
leg length 140mm
opening width 15mm
