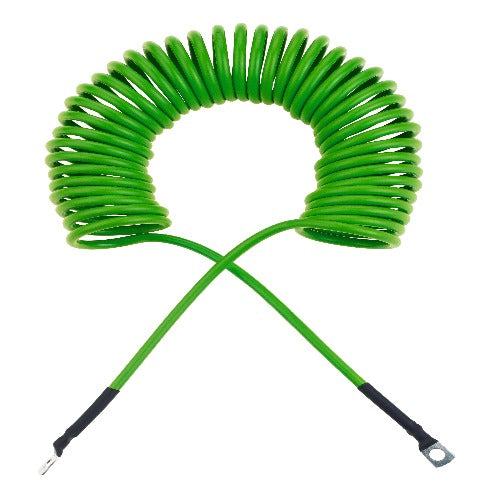

Grounding spiral cable steel 4 mm²
Grounding spiral cable steel 4 mm²
The single-pole, silicone-free steel rope spiral cables from REMBE® offer superior mechanical strength. The steel core used can withstand continuous daily use and its cable sheath is extremely resistant to acids, alkalis, mineral oils, greases and other chemicals. Unlike conventional copper cables, the steel strand does not break due to continuous daily use. A visual inspection is sufficient if the outer sheath is undamaged and the ring cable lug is firmly mounted. Since the spiral cables meet all the requirements of the DIN EN 60079-0 and DIN EN 60079-14 standards, they can be used in potentially explosive areas.
Advantages
✓ Steel core for superior mechanical strength
✓ Cable sheath resistant to acids, alkalis, mineral oils, greases and other chemicals
✓ Free from silicones
✓ Custom production of special lengths
technical data | |
---|---|
area of application | according to DIN EN 60079-14 |
cable type | ST-Li2Y |
coat color | green or green/yellow |
wire type | Steel cable |
cross-section | 4mm² |
page A + B | each 200 mm axial |
ambient temperature | -40°C to +80°C |
cable ends |
can be fitted with eyelets at no extra charge |
